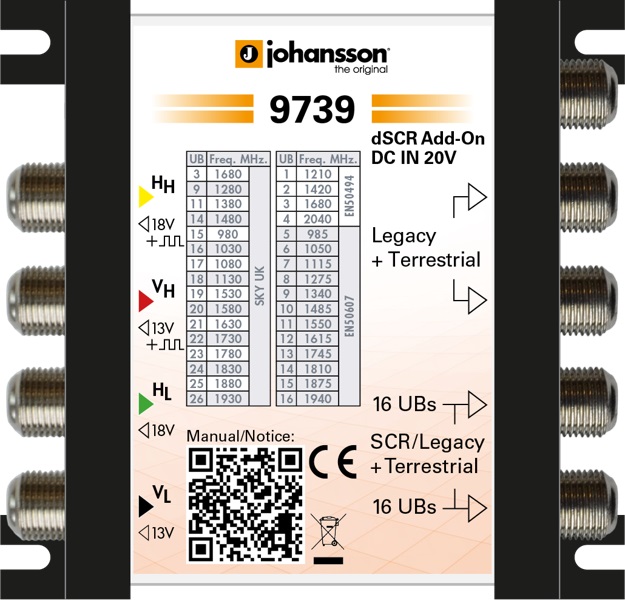

4 SAT + 1 TERR входа, 2 выход RF + 2 RF SCR по 16 пользователей (User Bands) каждый, всего 32 абонента
Inputs |
- |
4 ports Terrestrial + Satellite |
Input Frequency |
MHz |
5 – 862 / 950 – 2150 |
STB Output Frequency |
MHz |
5 – 862 / 950 – 2150 |
dCSS/dSCR outputs |
- |
2 legacy only 2 SCR/legacy (auto detection) |
dCSS/dSCR output connector |
Ohm |
75 F type (Female) |
dCSS/dSCR UBs |
- |
16 per SCR output |
dCSS/dSCR output level |
dBm |
-21 |
Satellite input power level |
dBm |
-45 to -15 |
Return loss |
dB |
>=8 (Typ 12) |
Tap loss SCR |
dB |
Not applicable, AGC (automatic Gain control) |
Tap loss legacy |
dB |
0 typical |
Terrestrial/Cable loss |
dB |
-7 typical |
Band and polarity selection |
- |
Universal LNB voltage & Tone DiSEqC 1.0 (unidirectional) DiSEqC 2.0 (bidirectional) Standard EN 50494 (SCD) Standard EN 50607 (SCD 2) SKY UK standard |
Max DC current consumption Legacy only ports |
W |
<2 |
Max DC current consumption SCR/Legacy ports |
W |
<4,2 |
DC power pass from STB to input ports |
V |
13/18/22kHz 100mA max per port |
From DC power port to input ports |
V |
13/18/22kHz 100mA max per port 1A max to HL port |
Power supply |
- |
From STB or power inserter |
Power (2460 available separately) |
A |
3.0 max, 20V |
Dimensions |
mm |
90x85x40 |
